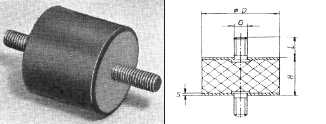

Gummi-Metallpuffer Typ A
- Kategorien:
- Gummi-Metallpuffer
Produktname:
Gummi-Metallpuffer Typ A
| Bezeichnung | Durchmesser D | Höhe H | Gewindegröße G | Gewindelänge L |
|---|---|---|---|---|
| 10/10 | 10mm | 10mm | M 4 | 10mm |
| 10/15 | 10mm | 15mm | M 4 | 10mm |
| 15/8 | 15mm | 8mm | M 4 | 10mm |
| 15/10 | 15mm | 10mm | M 4 | 10mm |
| 15/15 | 15mm | 15mm | M 4 | 13mm |
| 20/10 | 20mm | 10mm | M 6 | 15mm |
| 20/15 | 20mm | 15mm | M 6 | 15mm |
| 20/20 | 20mm | 20mm | M 6 | 15mm |
| 20/25 | 20mm | 25mm | M 6 | 15mm |
| 25/10 | 25mm | 10mm | M 6 | 18mm |
| 25/15 | 25mm | 15mm | M 6 | 18mm |
| 25/20 | 25mm | 20mm | M 6 | 18mm |
| 25/25 | 25mm | 25mm | M 6 | 18mm |
| 25/30 | 25mm | 30mm | M 6 | 18mm |
| 30/15 | 30mm | 15mm | M 8 | 23mm |
| 30/20 | 30mm | 20mm | M 8 | 23mm |
| 30/30 | 30mm | 30mm | M 8 | 23mm |
| 30/40 | 30mm | 40mm | M 8 | 23mm |
| 40/20 | 40mm | 20mm | M 8 | 23mm |
| 40/25 | 40mm | 25mm | M 8 | 23mm |
| 40/30 | 40mm | 30mm | M 8 | 23mm |
| 40/40 | 40mm | 40mm | M 8 | 23mm |
| 50/20 | 50mm | 20mm | M 10 | 28mm |
| 50/25 | 50mm | 25mm | M 10 | 28mm |
| 50/30 | 50mm | 30mm | M 10 | 28mm |
| 50/40 | 50mm | 40mm | M 10 | 28mm |
| 50/45 | 50mm | 45mm | M 10 | 28mm |
| 50/50 | 50mm | 50mm | M 10 | 28mm |
| 50/60 | 50mm | 60mm | M 10 | 28mm |
| 75/40 | 75mm | 40mm | M 12 | 37mm |
| 75/50 | 75mm | 50mm | M 12 | 37mm |
| 75/55 | 75mm | 55mm | M 12 | 37mm |
| 75/60 | 75mm | 60mm | M 12 | 37mm |
| 100/40 | 100mm | 40mm | M 16 | 36mm |
| 100/55 | 100mm | 55mm | M 16 | 36mm |
| 100/75 | 100mm | 75mm | M 16 | 36mm |
| 150/55 | 150mm | 55mm | M 16 | 37mm |
| 150/75 | 150mm | 75mm | M 16 | 37mm |
| 200/75 | 200mm | 75mm | M 20 | 45mm |
| 200/100 | 200mm | 100mm | M 20 | 45mm |
